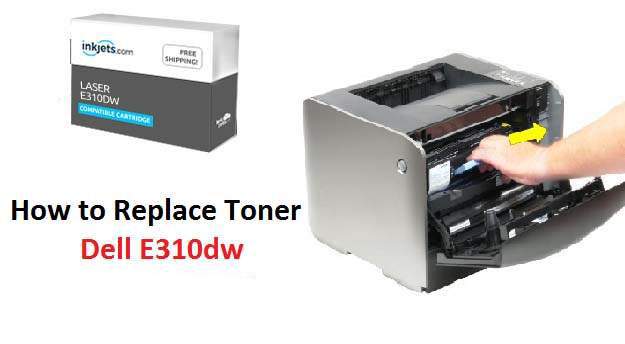

HOW TO REPLACE TONER DELL E310DW

Replacing a Toner Cartridge for Dell E310dw is not a big deal but however, you must be well aware of how to Replace Toner Dell E310dw so that you do not encounter unnecessary disruption while you are proceeding on your implementation of eradicating the timeworn Toner Cartridge with a novel one.

Before beginning the discussion on How to Replace Toner Dell E310dw, you must emphasize on the point that the display that shows “Replace Toner Message” will only be cleared if you install a new Toner cartridge into the machine. The Dell E310dw Printers are made in such a way that once the Toner Cartridge has perished, it cannot be replaced with a Toner of another machine and thereby it requires a new Dell Toner Cartridge to work efficiently and yield optimum results.

Following are the steps on How to Replace Toner Dell E310dw: #

Step 1 – Switch off the machine.

Step 2 – Open the front lid

Step 3 –Then, slowly take out Toner cartridge and the Drum Unit Assembly from the machine

Step 4 –Take the toner cartridge out of the drum unit by pushing down the lock lever.

Step 5 – Open the New Toner cartridge package.

Step 6 – Take out the protective cover

Step 7 – Place the New Toner Cartridge gently into the drum unit it locks into its designated place. Note that you insert the Toner Cartridge properly otherwise it might get detached from the unit.

Step 8 – Gently slide the tab inside the drum unit from the left to right and then to right to left to clean the Corona Wire inside the drum unit. But do not forget to return the tab to its Home slot. Also, note that the arrow on the tab should be in alignment with the arrow on the drum unit otherwise there may be a vertical stripe on the pages you print.

Step 9 – Then gently place the toner cartridge and drum unit assembly back into the machine

Step 10 –Finally close the front lid of the machine.

Make sure while you replace the Toner Cartridge you should not switch off the machine or open the front cover till the machine returns back to Ready Mode. You must also emphasize on using Dell branded Toner Cartridge, drums, transfer rollers or other consumables for the laser printers because Dell printers are not designed to be compatible with other branded consumables.  Also, if the above-listed steps do not solve the issue of the text “Replace Toner Message” then you should definitely look for and contact the Dell Technical support team.
